China P16 x-POCT Automatic flow fluorescence immunoassay system manufacturers and suppliers

P16 x-POCT Automatic flow fluorescence immunoassay system

One Vs All，lead POCT into the era of multiple testing!

Sample types: run whole blood/plasma/serum samples, no sample preparation, no manual dilutions.

On-demand testing: single-dose format, multiple index,high throughput, full-automatic. N results of one test (N∈{1~24}).

Special optical system: Self developed magnetic fluorescence encoding microsphere technology & Innovative magnetic separation technology.

Excellent quality control calibration system: Support two-point calibration & third party quality control.

We also offer OEM & ODM solutions and comprehensive tests such as cardiac, inflammation,fertility,thyroid and tumor marks.we can provide one-stop products and services from instrument customization, reagent matching, CDMO to product registration.

Any inquiries we are happy to reply, please send your questions and orders.

Send email to us

Product Detail

Product Tags

Description

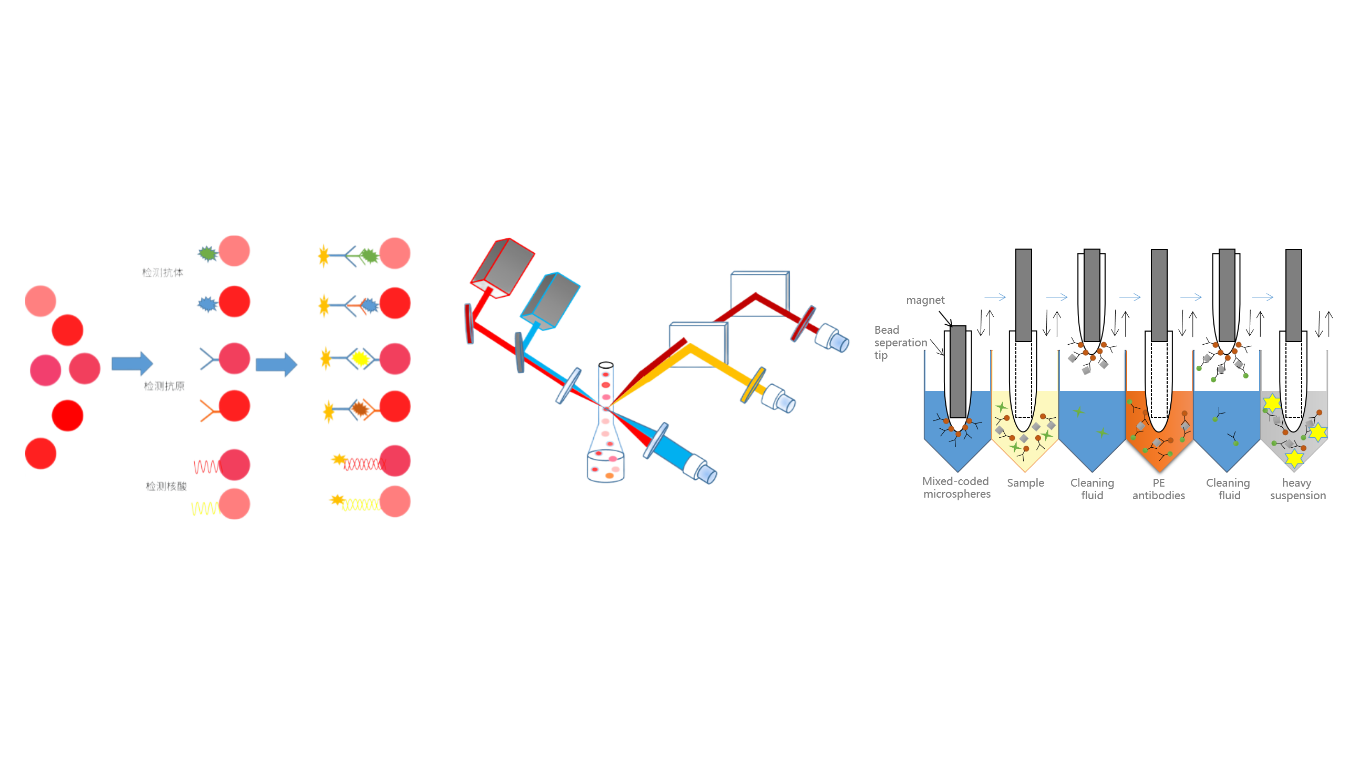

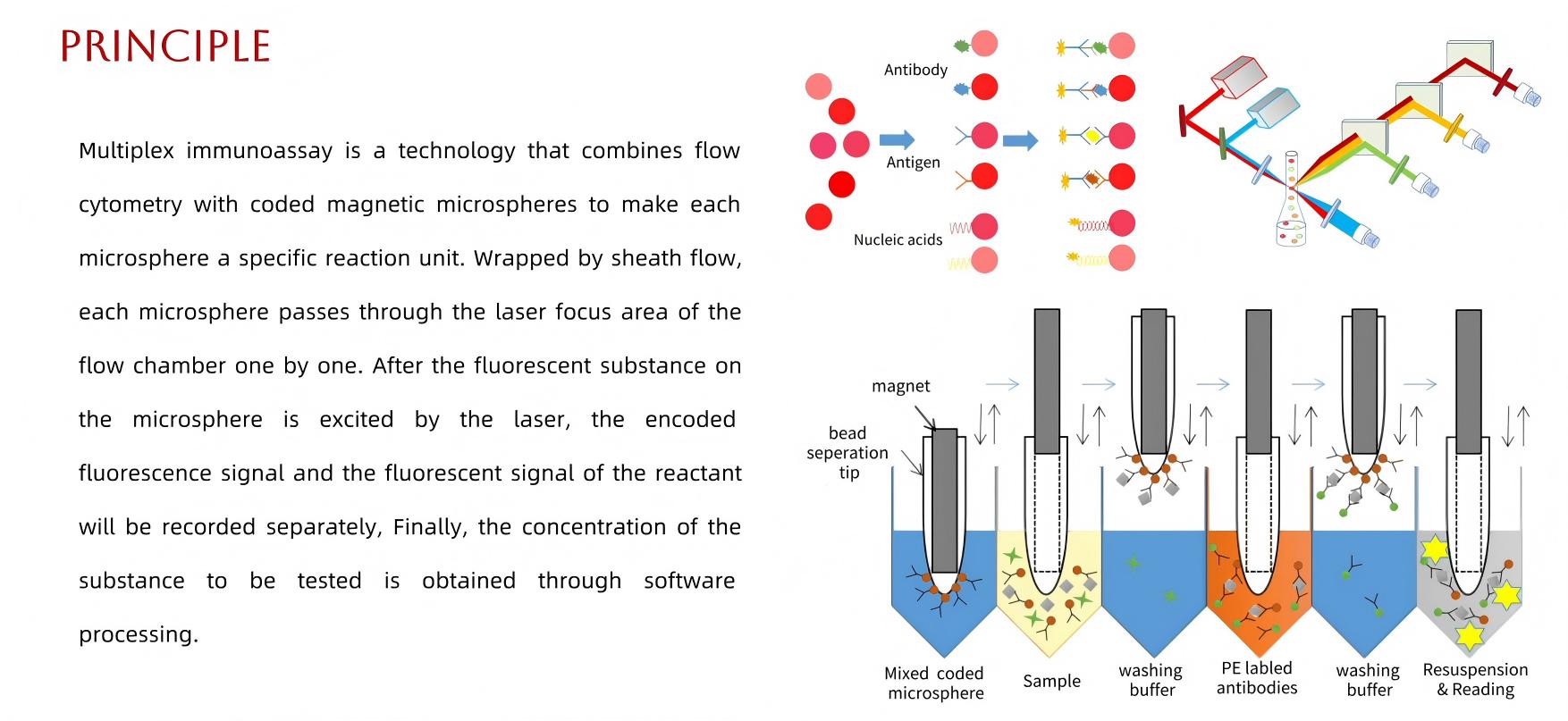

Flow cytometry, also known as liquid chip and multiple fluorescence immunity, is a technology that combines flow cytometry with fluorescence encoding microsphere to make each microsphere a specific reaction unit. Wrapped by sheath flow, each microsphere passes through the laser focus area of the flow chamber one by one. After the fluorescent substance on the microsphere is excited by the laser, the encoded fluorescence signal and the fluorescent signal of the reactant will be recorded separately, Finally, the concentration of the substance to be tested is obtained through software processing.

Product Features

1.Sample types: run whole blood/plasma/serum samples, no sample preparation, no manual dilutions.

2.On-demand testing: single-dose format, multiple index,high throughput, full-automatic. N results of one test (N∈{1~24})

3.Special optical system: Self developed magnetic fluorescence encoding microsphere technology & Innovative magnetic separation technology.

4.Excellent quality control calibration system: Support two-point calibration & third party quality control

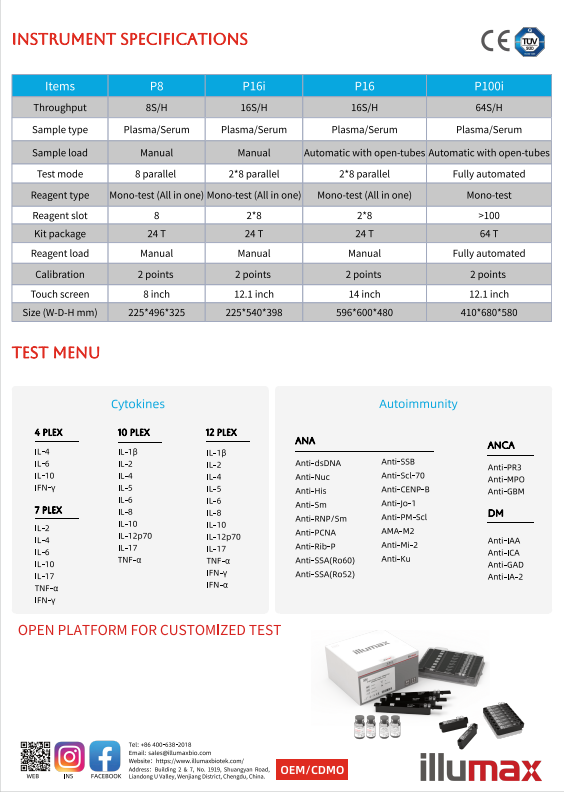

Specifications

Measuring method	2*8 channels parallel test
Measuring channel	PE
Sampling method	crawler-type, test at anytime
Throughput	760T/H
Reaction temperature	37℃
Sample types	whole blood/plasma/serum
Laser	488nm/638nm
Sample scanner	Intergrated
Thermal printer	Intergrated
Interface	USB*2、LIS
Dimension(WDH)	596615480mm
Weight	50kg

Product Application

Tumor marker, cervical cancer, Methylation of lung cancer, occult blood, reproductive health, Cardiovascular and Inflammation, mutation detection, autoimmunity, thyroid

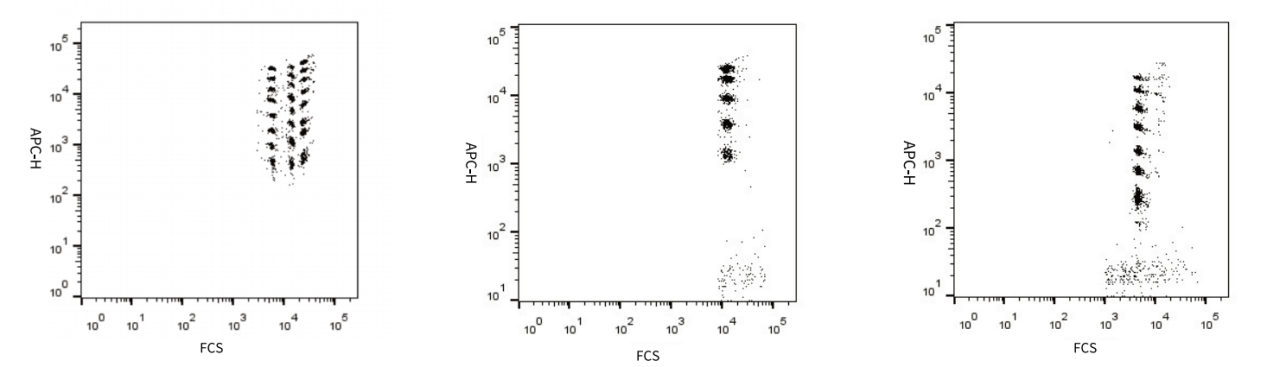

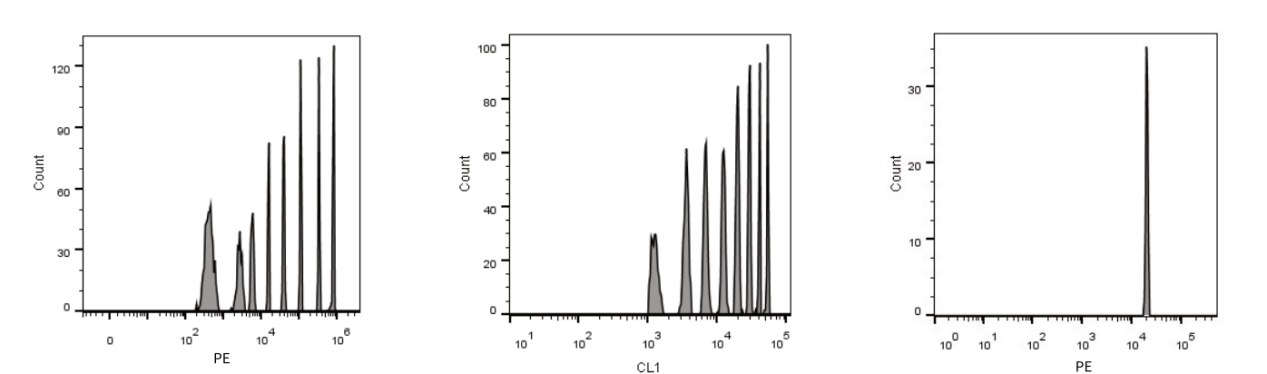

Test performance

Test items

Series	Product name
4 cytokine	IL4、IL-6、IL10、IFN-γ
7cytokine	IL-2、IL4、IL-6、IL10、IL17A、TNF-α、IFN-γ
12cytokine	IL1-β、 IL-2、IL4、IL5、IL-6、IL8、IL10、IL12p70 IL17A、TNF-α、IFN-γ、IFN-α
